分类：初效空气过滤器
描述：
0755-28660302

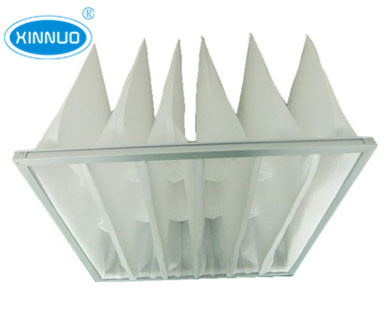

初效袋式空气过滤器
Air filter bag filter early effect
特点Features
●可重复使用多次
●阻力小、风量大
●广泛运用于空调系统的中级过滤
●Adopts reusable times
●Responding to small resistance, air
U7CC彩票●Widely used in air conditioning system
of intermediate filtration
构成材料及运行条件
Materials and operating conditions
U7CC彩票●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
U7CC彩票●Filter material: new composite nonwoven fabric
●滤料颜色：白色
●Liao color: white
●密封条：醋酸乙酯
●Gasket：EVA
●使用最高温度、湿度：80℃、80%
U7CC彩票●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
U7CC彩票Standard specification
型号 model | 外形尺寸 Outside Dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（级别） Efficiency (class) | 滤料颜色 Liao color | 袋数 pockets |
U7CC彩票 XN-15J | 495×295×500mm 20″×12″×20″ | U7CC彩票 1500m3/h |
U7CC彩票 25~35Pa
| U7CC彩票 25-35% G3
U7CC彩票 35-45% G4 | U7CC彩票 White | 5 |
XN-25J | 495×495×500mm 20″×20″×20″ | 2500m3/h | 5 | |||
XN-20J | 595×295×500mm 24″×12″×20″ | 2000m3/h | 6 | |||
U7CC彩票 XN-32J | 595×495×500mm 24″×20″×20″ | 3200m3/h | 6 | |||
XN-38J | 595×595×500mm 24″×24″×20″ | 3800m3/h | 8 | |||
U7CC彩票 XN-18J | 495×295×600mm 20″×12″×24″ | 1800m3/h | 5 | |||
U7CC彩票 XN-32J | 495×495×600mm 20″×20″×24″ | 3200m3/h | 5 | |||
XN-25J | 595×295×600mm 24″×12″×24″ | 2500m3/h | 6 | |||
XN-40J | 595×495×600mm 24″×20″×24″ | 4000m3/h | 6 | |||
U7CC彩票 XN-45J | 595×595×600mm 24″×24″×24″ | 4500m3/h | 8 |
