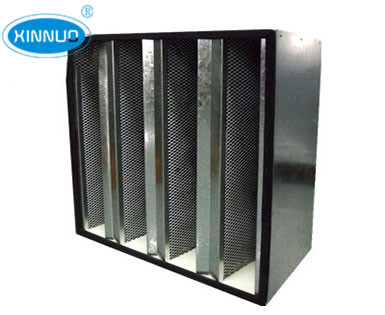

复合化学过滤器
U7CC彩票Compound Chemical filter
特点features
U7CC彩票●过滤材料采用优质颗粒活性炭与超细合成纤维复合而成
●可吸附低浓度的有机污染物、二氧化硫、二氧化碳等有害气体
U7CC彩票●适用于博物馆、图书馆、高档酒店、写字楼、机场、高档私人会所的空调系统
U7CC彩票●Adopt Quality granular activated carbon composite with superfine synthetic fibers
U7CC彩票●good adsorption of low concentration of organic pollutants,sulfur dioxide,carbon dioxide and other harmful gases
●used in museums ,libraries,luxury hotels,office buildings,airports,high end private clubs etc air conditioning systems
构成材料及运行条件
U7CC彩票Material and operating conditions
●框材：塑胶外框ABS
●frame: ABS plastic
●分隔物：热熔胶
U7CC彩票●separator: Hot melt
U7CC彩票●过滤材料：合成纤维+颗粒活性炭
U7CC彩票●media: granular activated carbon and synthetic fiber
U7CC彩票●密封材料：聚氨酯
U7CC彩票●sealant: Polyurethane
型号尺寸及其他参数（Specification ）
型号 model | 外形尺寸 Outside dimensions (mm) | 有效过滤面积 filtering Area (m2) | 初阻力 Initial resistance (Pa) | 额定风量 Rated Airflow (m3/h) | 滤料 Filter materials |
XN-32J | 592×592×292 | 9.0 | ≤90 | 3200 | 复合纤维颗粒活性炭 Compound activated carbon |
XN-27J | 592×490×292 | 7.1 | ≤90 | 2700 | |
XN-16J | 287×592×292 | 4.5 | ≤90 | 1600 | |
XN-8J | 287×287×292 | 2.2 | ≤90 | 800 |
